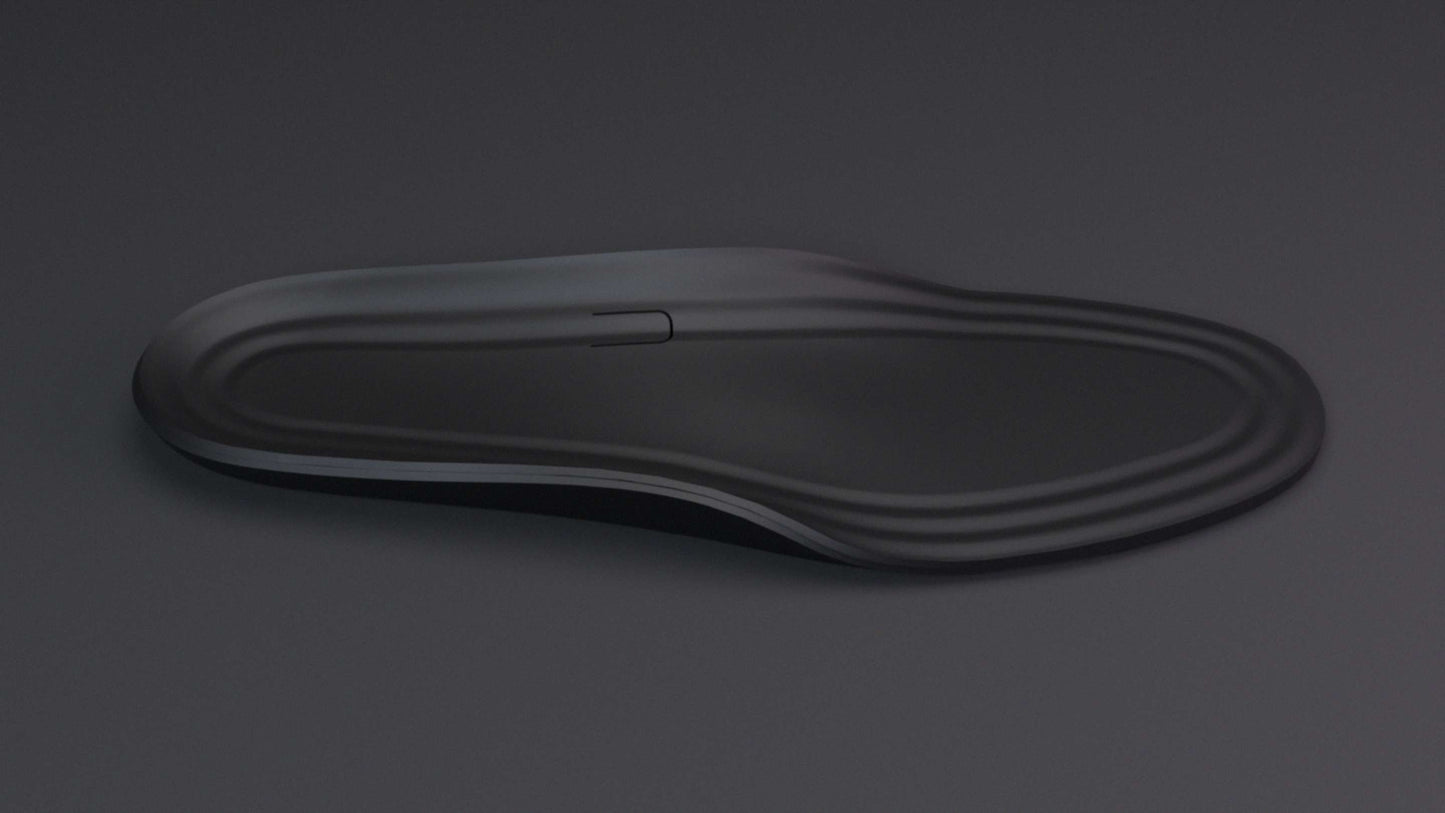

Smart Pressure Sensing Insole

AVAILABLE SOON

The TG0 Smart Pressure Sensing Insole is a great example of TG0 pressure mapping technology applied to a fitness use case. Its light-weight, bendable and water-proof nature make it a perfect for a smart wearable application. With machine-learning software integrated the product kit is designed to help you test movement, posture and activities tracking. The TG0 Insole implementation also provides significant cost-reduction compared to other sensor-embedded systems insoles thanks to TG0’s polymer-based sensor solution.

What you get?

• A pair of pressure-mapping insoles
• BLE wireless communication dongle
• PC-based UI software program

Product Features

• Real-time Heatmap , resolution 2.5 x 2.5 mm (width ~90mm / signal range 0~40pts)
• COP (centre of pressure)
• Balance and stability feedback
• Body alignment
• Stand - walk - run activity tracking
• Gait analysis
• Pronation
• Step count
• Exercise repetition count

Product specifications
Hardware

• Size: EU 42 / UK 8 / US 9 / JP26.5 (foot length 265 mm / 10.4 in)
• Aspect materials: Fabric (Aspect material), Conductive EVA foam (Sensor material), EVA foam (Structural material)
• Sensing materials: Conductive EVA
• Power supply : 3.7V Li-po battery Rechargeable

Software

• Interface: Windows  PC PyQT Application: (Windows PC required)
• API: Sensing XYZ data, COP (centre of pressure), balance; gait analysis, step count

Services

• Customization and integration service available
• Contact us for further details
